(click on photos for larger view)
 |
|
2 channel 4 inputs (high & low) |
|
High treble & normal channels |
|
2 Volume, Treble, Mid, Bass and presence |
|
2 Matched KT66 power tubes (Valve
Art KT66) |
|
3 JJ 12AX7 preamp tubes |
|
1 GZ34 rectifier tube |
|
Heyboer transformers (original radiospares
specs) (120/240 volt primary) |
| Output Tranny has correct 6.6 k primary |
| 4, 8 or 16 ohm selector |
| Two speaker outputs |
| Optional negative feedback control (27 to
77k) |
| Plexi panels |
| Original JTM 45™
Plexi specs |
| Correct filtering |
| dijon "mustard"
caps allen bradley carbon comp resistors |
| Aluminum chassis |
| Hand wired point to point (Teflon wire) |
| Baltic birch cabinet (black Levant Tolex)
|
|
Price:
$1,895
Style I Cabinet:
28"h x 22"w x 12"d
Style II Cabinet:
32"w x 23"h x 10-1/2"d
Reissue Size, Style II:
29-1/4"w x 23-3/4"h x
10-1/2"d
5 year limited warranty.
1 yr speakers 90 days tubes
Head Version:
$1,545
|
|
OPTIONS: |
Optional
Tolex:
add $35.00 |
|
Optional Grill
Cloth:
add $35.00 |
|
Optional Knobs:
add $10.00 |
|
| Mercury Magnetics
Radio Spares Output Tranny (16 OHM output):
Add $200.00 |
|
| Mercury Magnetics
Radio Spares Output Transformer (8 OHM output):
Add $200.00 |
|
Negative Feedback
Control:
add $35.00 |
|
SOZO caps
upgrade:
add $35.00 |
|
Adjustable line
out:
add $50.00 |
|
Zero Loss Effects loop with
bypass switch
add $150.00 |
|
|
Weber Speakers: |
|
12" AlNiCo Blue Dog:
add $100.00 ea |
|
12" AlNiCo Silver
Bell:
add $100.00 ea |
|
|
Celestion Speakers: |
|
Celestion Blue:
add $150.00 ea |
|
Heritage Series G12M:
add $100.00 ea |
|
Heritage Series G12H:
add $100.00 ea |
|
| Other makes and
models of speakers available by request. |
|
|

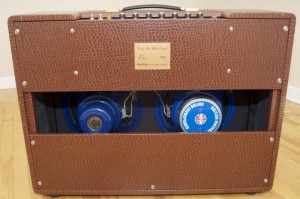

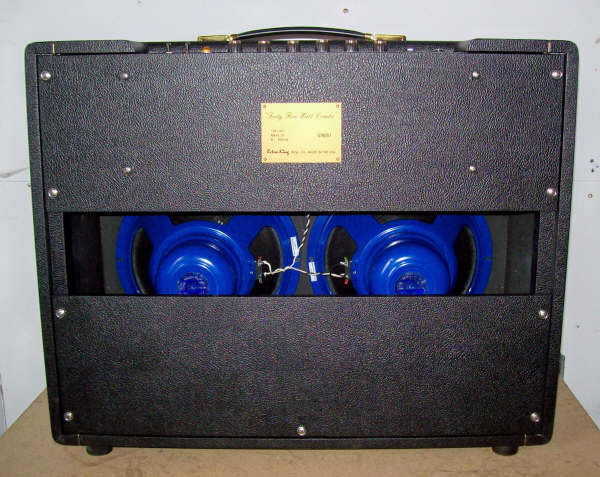

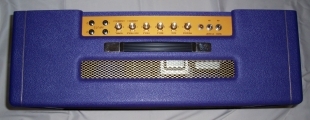

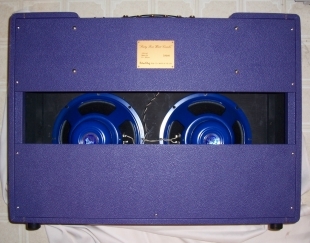

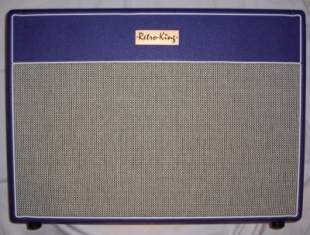

The "45
Watt Combo" is a replica of the
famed 1960's Bluesbreaker 2x12 combo.
Unlike the reissue, this amp is hand wired point to point on a vintage
style turret board and is built to the exact specs of the original.
The output tranny built for me by heyboer with the 6.6k primary plate
load is optimal for the kt-66 power tubes. As in the originals, the
filtering in the first cap is a double 32mf cap and the second is a
double 16mf cap.
This amp uses the early "plexi" tone control values
along with the standard preamp values. You can also order this amp with
the optional negative feedback control adjustable from the stock 27k to
77k (mounted on back of amp). This will give you more or less
power amp gain.
Eric Clapton "Beano" tone to AC/DC, its all here. |
